It's been long overdue, but I finally gave the "wifi.genetrysolar.com" remote server a much-needed facelift. This actually pulls directly from the up-and-coming local server refresh on the yet-to-be-released firmware 1.2r0.
The login process all needs overhauled--but kinda waiting on that until the entire website gets an overhaul with SSO, etc., etc.
If any of you experience any NEW issues with the updated design, please let me know.
If any of you experience any NEW issues with the updated design, please let me know.
Guessing your still tinkering on it, been watching it. Sometimes all my gauges go gray, also at the top right under where it says the inverter info it says undefined. The frequency gauge is not displaying correctly it is 60hz on the LCD, but the gauge is showing "0.15". That is all I have noticed so far. Nice work though big improvement.

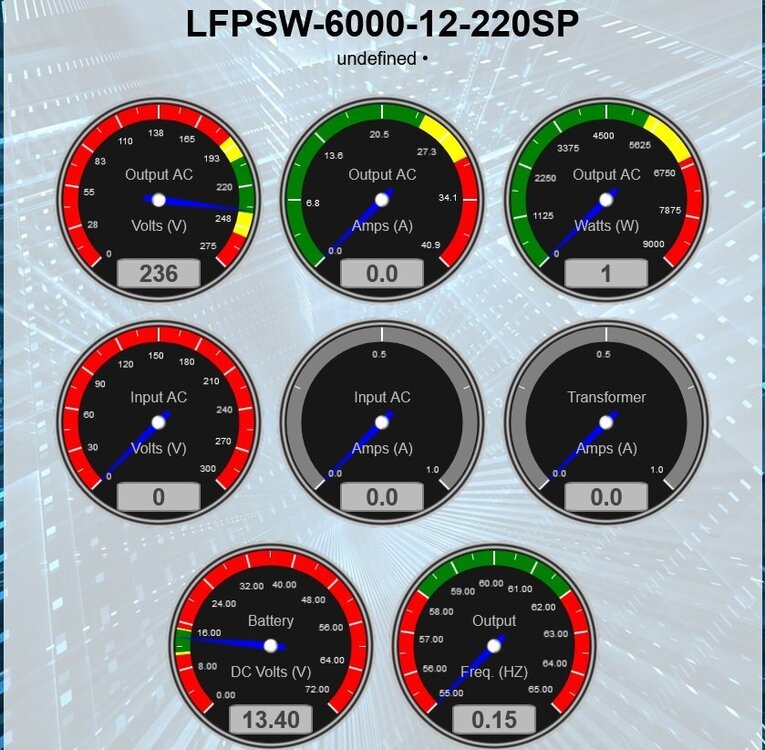

Here is a screenshot
3 minutes ago, AquaticsLive said:Guessing your still tinkering on it, been watching it. Sometimes all my gauges go gray, also at the top right under where it says the inverter info it says undefined. The frequency gauge is not displaying correctly it is 60hz on the LCD, but the gauge is showing "0.15". That is all I have noticed so far. Nice work though big improvement.
Not sure where the "0.15" is coming from--but it does look like the firmware in your inverter is pretty old (which is probably my fault for not keeping the PJ-based inverter firmwares up-to-date). Maybe I should add a debug statement to the webpage so you could provide some diag info off the debug console...?
So the "undefined" area has to do with some missing/unexpected info in the JSON data from the inverter--I think! Here's a more expected result from a more up-to-date GS-based inverter...
<img class="ipsImage ipsImage_thumbnailed" data-fileid="1577" data-ratio="30.73" width="537" alt="image.png.3e0693b22d8ad7eb1ef1bc14bdd67fe8.png" data-src="/monthly_2022_08/image.png.3e0693b22d8ad7eb1ef1bc14bdd67fe8.png" src="/applications/core/interface/js/spacer.png" />
Curious what firmware version is in your PJ-upgrade inverter? (OUT page -> Diagnostic Info -> top lines.)
Curious what firmware version is in your PJ-upgrade inverter? (OUT page -> Diagnostic Info -> top lines.)
1.0.r24

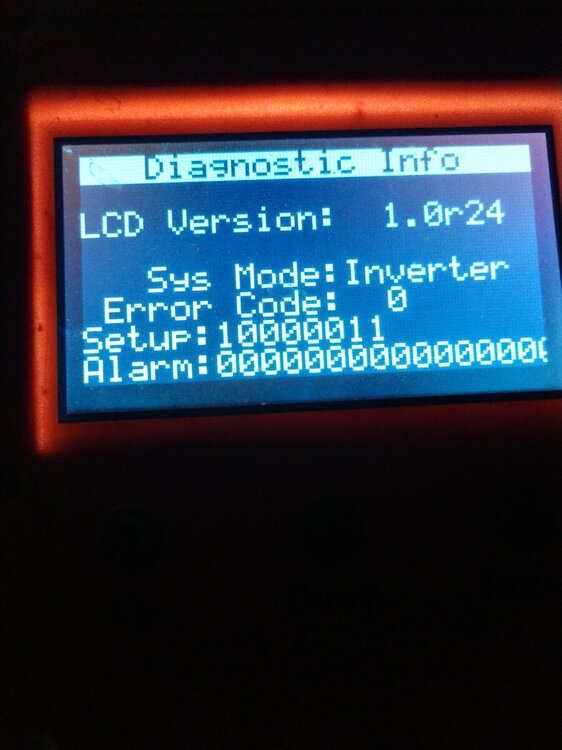

Pic of the diag screen.
Ha yeah, that's real old 😉. Doesn't even show the CPU version.
Ha yeah, that's real old 😉. Doesn't even show the CPU version.
Yeah no worries. I was just letting you know. I only checked it out because you asked for some feedback. I didn't want to leave you hanging man.
