So Im trying to figure out if e6000 glue is appropriate to glue the thermistors to the transformer? Or what glue do y’all use? I think Sean added 4 total to his old pj upgraded my plan is the same but no idea what glue to use. Please chime in & thanks.
<a href="/monthly_2021_09/F982906E-E699-492A-AF77-A12550CAABB1.jpeg.63f9ad2dd32109aa85fa42e4b279cfdd.jpeg" class="ipsAttachLink ipsAttachLink_image"><img data-fileid="739" src="//forums.genetrysolar.com/applications/core/interface/js/spacer.png" data-src="/monthly_2021_09/F982906E-E699-492A-AF77-A12550CAABB1.thumb.jpeg.8f315635a24ebbfd684486f6bec62e1d.jpeg" data-ratio="133.69" width="561" class="ipsImage ipsImage_thumbnailed" alt="F982906E-E699-492A-AF77-A12550CAABB1.jpeg">
<a href="/monthly_2021_09/248519B9-217F-4C25-8A03-7D3790A40634.jpeg.3f7625dfedd0f420770980a1fbffc34a.jpeg" class="ipsAttachLink ipsAttachLink_image"><img data-fileid="740" src="//forums.genetrysolar.com/applications/core/interface/js/spacer.png" data-src="/monthly_2021_09/248519B9-217F-4C25-8A03-7D3790A40634.thumb.jpeg.c844f7d8837b2b95c44e2b14c5ca692b.jpeg" data-ratio="133.45" width="562" class="ipsImage ipsImage_thumbnailed" alt="248519B9-217F-4C25-8A03-7D3790A40634.jpeg">
3 hours ago, Bwicked007 said:So Im trying to figure out if e6000 glue is appropriate to glue the thermistors to the transformer? Or what glue do y’all use? I think Sean added 4 total to his old pj upgraded my plan is the same but no idea what glue to use. Please chime in & thanks.
Any glue that isn't acidic / chemically unstable should be fine--you don't want it to eat the enamel off of the transformer wire. (Pretty sure Sean uses regular hot glue.) A favorite trick of mine is to try to slide it under some windings.
Any glue that isn't acidic / chemically unstable should be fine--you don't want it to eat the enamel off of the transformer wire. (Pretty sure Sean uses regular hot glue.) A favorite trick of mine is to try to slide it under some windings.
I didn’t even think of sliding it under the windings, very smart idea Sid. Thanks for responding btw.

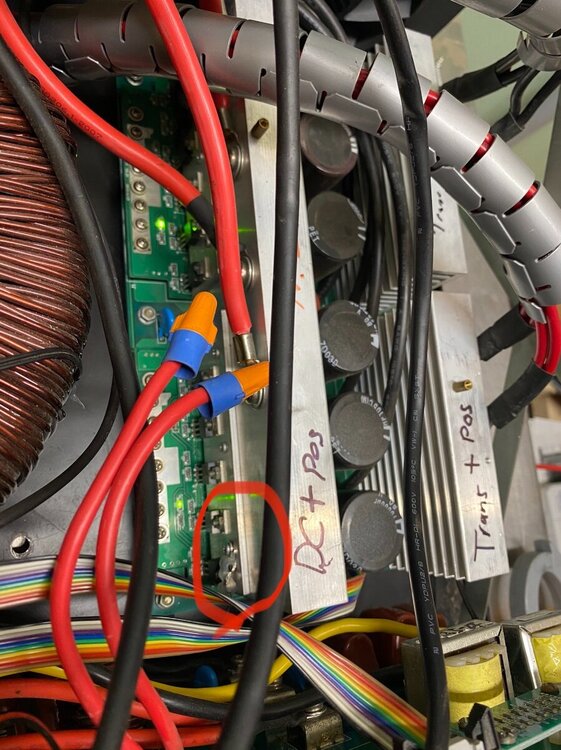

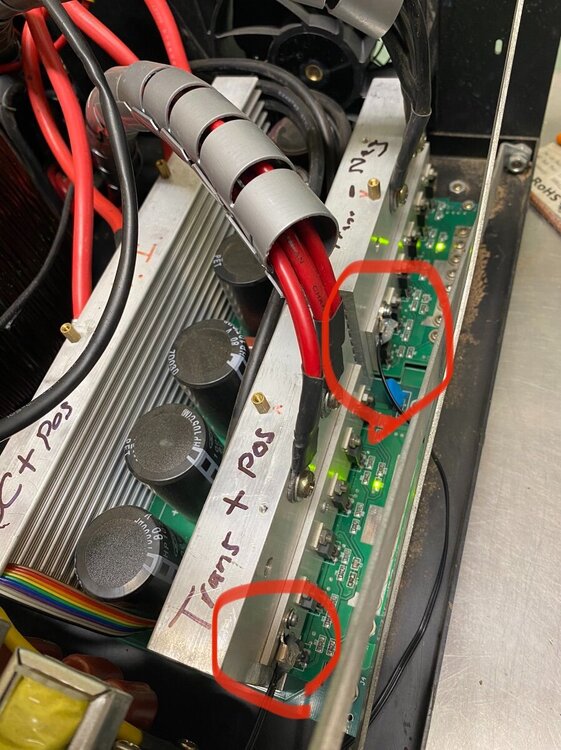

So just an update I got glued the thermistors. I have 3 on the mosfets & 3 on the transformer. Waiting on 3 more thermistors to show up.

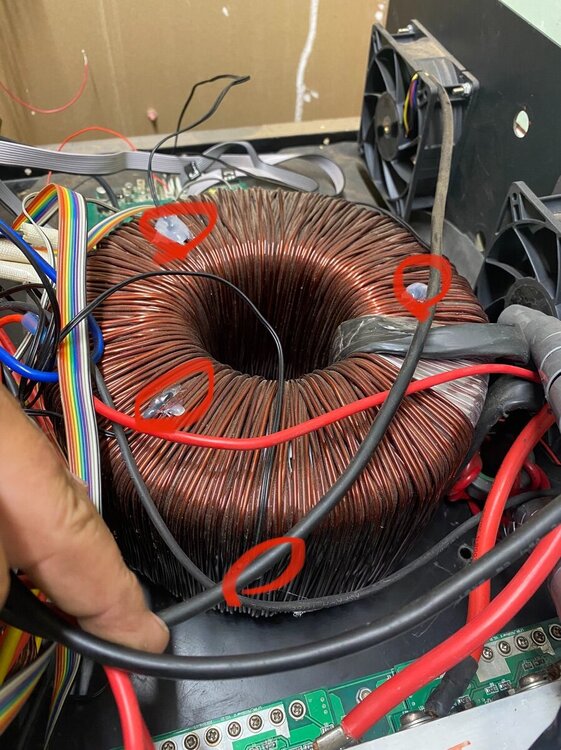

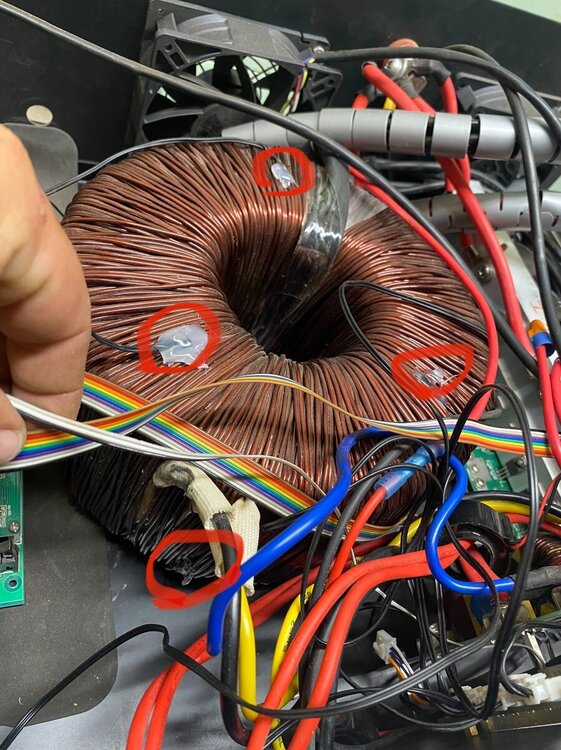

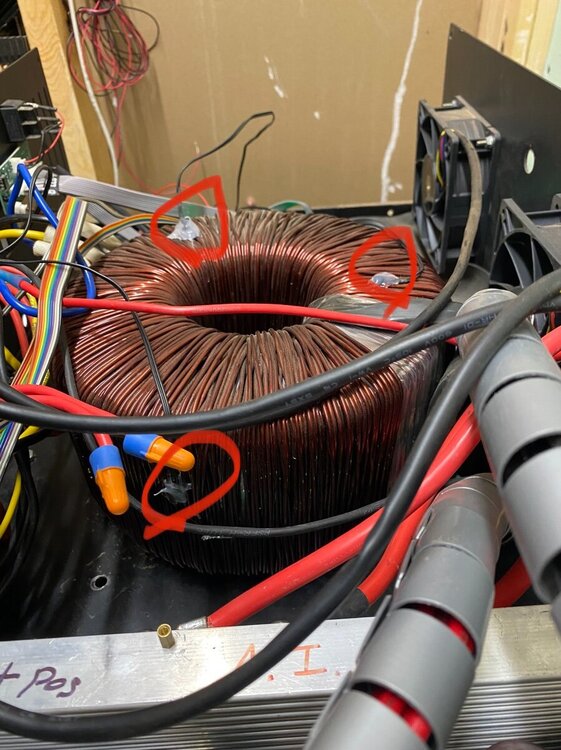

Figure I update this. So I have all 8 thermistors hooked up: 5 total on transformer & 3 on main board. Picture below is all the locations I installed on trans & scroll up for the ones on main board if you missed it. Enjoy.
