110v vs 220v with 4000w PJ Inverter v11

23 Posts
4 Users
1 Likes
402 Views
(@dickson)
Noble Member
Joined: 4 years ago
Posts: 1061


MY blue control board and LF Driver .    The connection is simple like the GS12kw  control board .

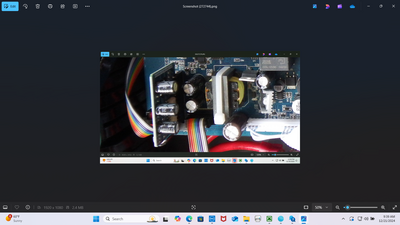

Screenshot (303682)
Screenshot (303683)





ReplyQuote
(@lener)
Trusted Member
Joined: 2 years ago
Posts: 46


@dickson

Thank you for the quick response!I will be disappointed if I need more additional parts, my inverter has a LCD but does not have a 22 pins connector. I have  attached the front and the back LCD with all the connectors, there are two connectors a  four multi color( white ,blue ,green and orange) a two black and red both lead to the charger board however there are two ribbons see pictures #5 for a grey and white we’re connected to the control board .so if I understand that I will need a new LCD as well.?

IMG 2220

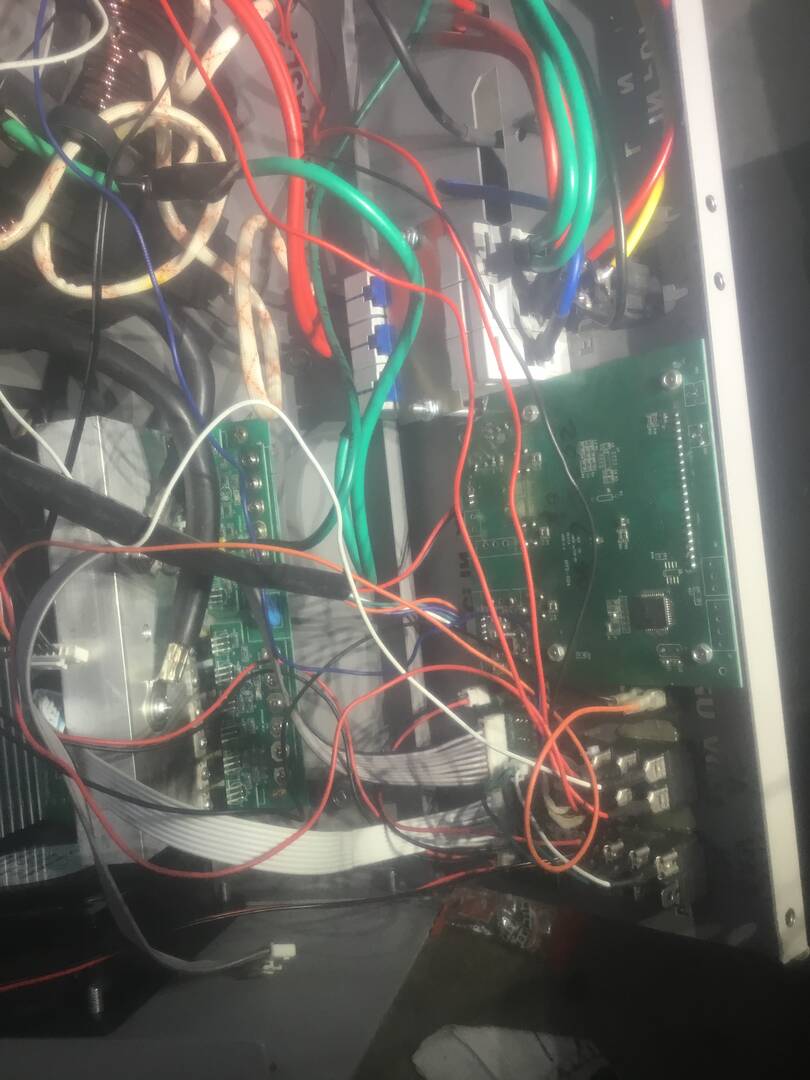

IMG 2221

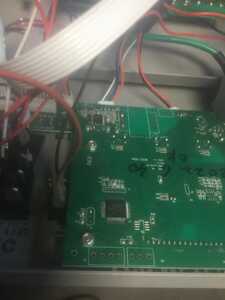

IMG 2225

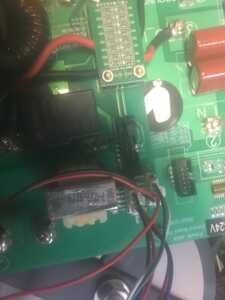

IMG 2223

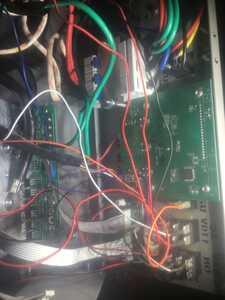

IMG 2222





ReplyQuote
(@dickson)
Noble Member
Joined: 4 years ago
Posts: 1061


The LCD screen  that connect to the rev11.3 control board is different than the  22 pins connection to the blue control board .   The 22 pins connection cable and  LCD is additional  parts needed  .    The LCD screen  is at the bottom of my picture  and  is not the same  as the  rev 11.3 LCD .   If David do not sell on Ebay then  ....

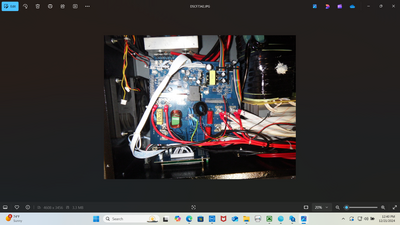

Screenshot (303755)
Screenshot (303756)





ReplyQuote
(@dickson)
Noble Member
Joined: 4 years ago
Posts: 1061


David  do have the  20pins  LCD for the blue control board ,

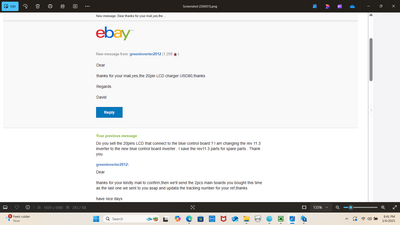

Screenshot (356933)





ReplyQuote
(@lener)
Trusted Member
Joined: 2 years ago
Posts: 46


Posted by: @dickson

David  do have the  20pins  LCD for the blue control board ,

-- attachment is not available --



@Dickson,

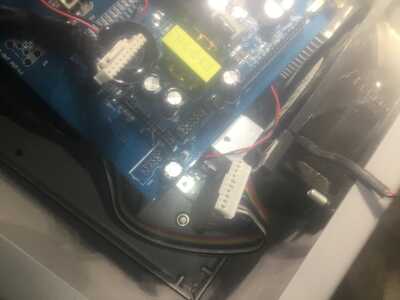

I don’t How much success you having from PJ( David or Jelly)I got nothing but anxiety……. I ordered the control board , main power moss ( should  have been double 2 ,5 pin rainbow connector as per picture 3&4) also the ribbon was sliced / damaged as picture 1

IMG 2252
IMG 2258

moss board, always incorrect,never received the correct replacement parts, this time I had eBay involved to get my money back I could have purchased a new inverter for all my lost. If you interested in the new blue controller and the rest of the inverter for parts  we can trade for any others solar energy products , although as you know that inverter is pretty heavy , I am in  the Pocono region of PA.

IMG 2268

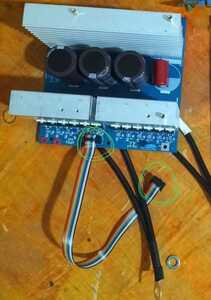

IMG 2259







ReplyQuote
(@dickson)
Noble Member
Joined: 4 years ago
Posts: 1061


The parts cost more than if you buy a whole new inverter .   All my powerjack inverters are  48 vdc  so your 24vdc blue control board  not work for me  .   I can probably use your mainboard .  I do not know how to send private message .    Can you send message ?   Thank you .



ReplyQuote
(@lener)
Trusted Member
Joined: 2 years ago
Posts: 46


Posted by: @dickson

The parts cost more than if you buy a whole new inverter .   All my powerjack inverters are  48 vdc  so your 24vdc blue control board  not work for me  .   I can probably use your mainboard .  I do not know how to send private message .    Can you send message ?   Thank you .

I did sent you a private message! The private message option is located in the upper screen forums icon the open for other options..







ReplyQuote
(@dickson)
Noble Member
Joined: 4 years ago
Posts: 1061


I sent an email to  Juno  but no response .  The mosfets for the 24vdc  may be different  than the  mosfets  for the 48vdc mainboard .



ReplyQuote
