Power Jack overheating

8 Posts
2 Users
0 Likes
157 Views
(@rafaelmedina23)
Trusted Member
Joined: 4 years ago
Posts: 56
Topic starter

Powerjack inverter 24 volts 8000 watts splitphases.

The inverter transformer is over heating and turning off without any warning if fans are in automatic mode, if fans are switched on manually it won't shutdown. The other problem is that no warning are available even if battery is low it will keep on no alar and will go to 18 volts.



Quote
(@rafaelmedina23)
Trusted Member
Joined: 4 years ago
Posts: 56
Topic starter
Posted by: @rafaelmedina23
Powerjack inverter 24 volts 8000 watts splitphases.

Although they did not look so damaged, but I changed the mosfets and the driver board.



ReplyQuote
(@sid-genetry-solar)
Member Admin
Joined: 4 years ago
Posts: 2890

20 hours ago, Rafaelmedina23 said:

Powerjack inverter 24 volts 8000 watts splitphases.

The inverter transformer is over heating and turning off without any warning if fans are in automatic mode, if fans are switched on manually it won't shutdown. The other problem is that no warning are available even if battery is low it will keep on no alar and will go to 18 volts.

Have you checked the "battery voltage" adjustment knob--that is, if your inverter has it?



I wouldn't be surprised if the battery voltage protection is completely disabled.  Does the inverter beep several times at startup?



ReplyQuote
(@rafaelmedina23)
Trusted Member
Joined: 4 years ago
Posts: 56
Topic starter
Posted by: @sid-genetry-solar

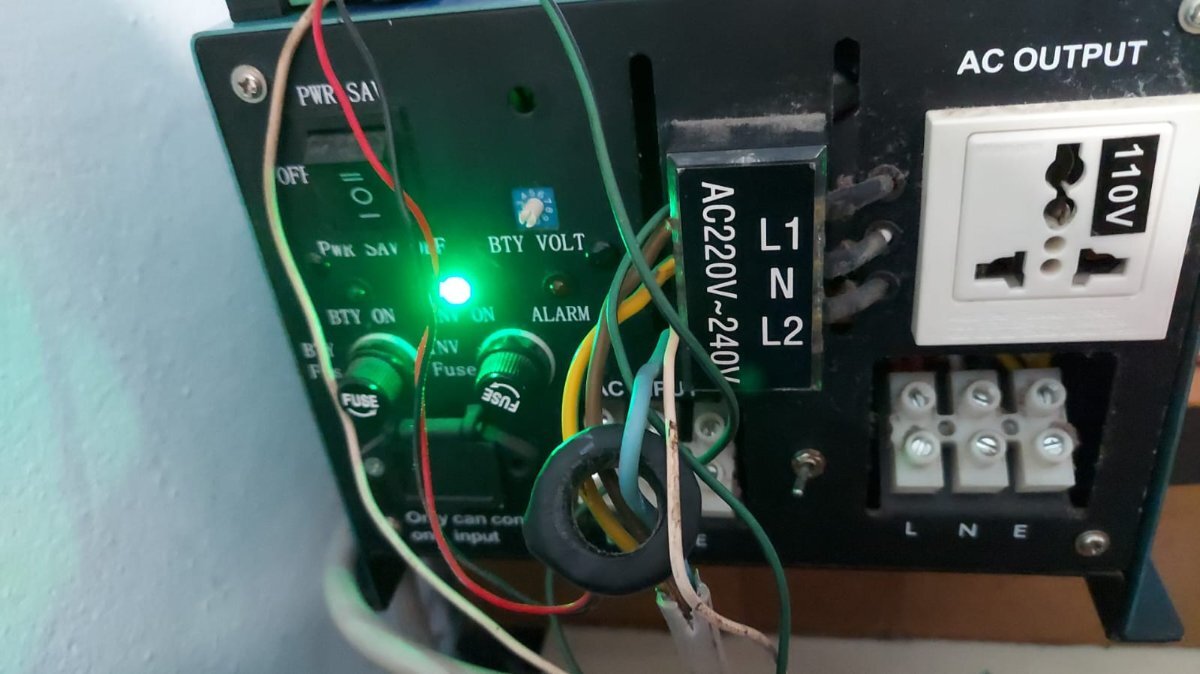

Have you checked the "battery voltage" adjustment knob--that is, if your inverter has it?

The only knob is the charger voltage, it doesn't beep only shutdown and then is a steady beep




ReplyQuote
(@rafaelmedina23)
Trusted Member
Joined: 4 years ago
Posts: 56
Topic starter

The only knob is the charger voltage, it doesn't beep only shutdown and then is a steady beep



ReplyQuote
(@sid-genetry-solar)
Member Admin
Joined: 4 years ago
Posts: 2890


Hmm.  Sounding a bit like the thermal switch for the fan control isn't working?  Maybe you can trace the wires and try to locate the thermal switch (it looks an awful lot like the MOSFETs actually, but it's a bimetallic thermal switch).  Often covered in black goop, on top of the transformer.



ReplyQuote
(@rafaelmedina23)
Trusted Member
Joined: 4 years ago
Posts: 56
Topic starter

Thermostat?





ReplyQuote
(@sid-genetry-solar)
Member Admin
Joined: 4 years ago
Posts: 2890

Posted by: @rafaelmedina23
Thermostat?

Depending on the inverter revision, there'll either be a mechanical bimetallic thermostat (TO-220 style package) on the transformer with wires going to the fans...OR...if the fans are plugged into the control board (v11 and newer I believe) it'll be controlled by the CPU.



ReplyQuote
