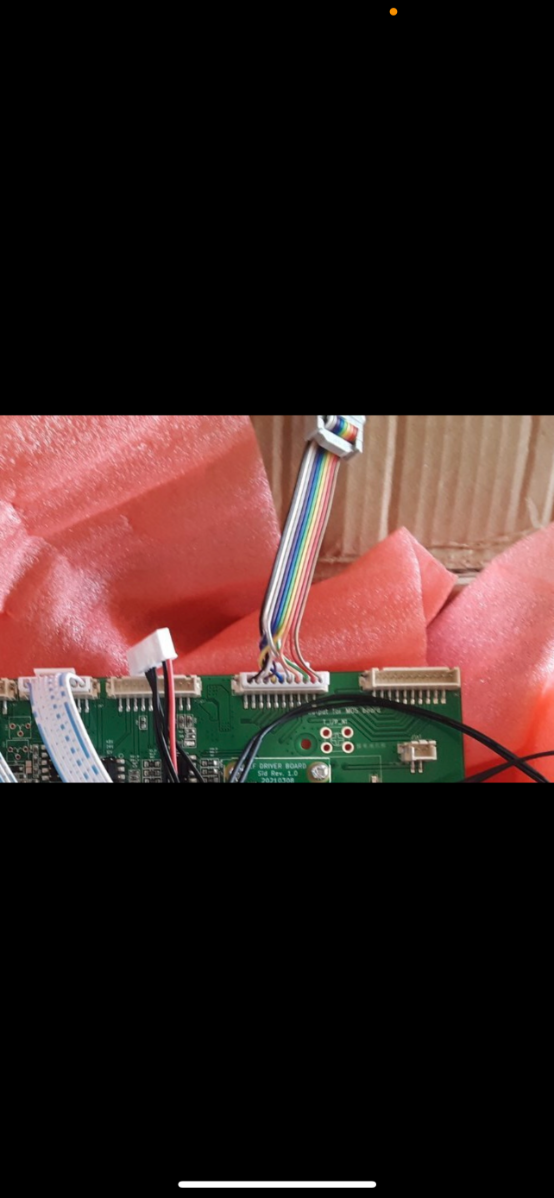

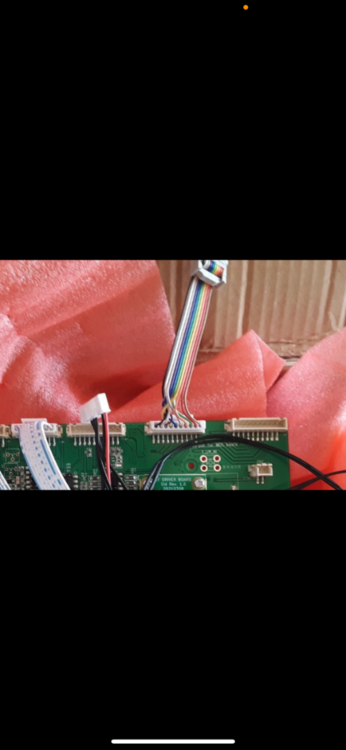

Is the below the correct pin to pin wiring between the New 11.3 control board Output for MOS board to an Old 2.6 main board?
Main Board ………. … Control Board
CN02 pin=colors.. … CN1_3 pin
===============… =======
01=Black, ..………….. 01
02=White, ..………….. 02
03=Gray, ..…………… 06
04=Violet, ..…………… 03
05=Blue, ..…………… 05
06=Green, ..…………… 08
07=Yellow, ..……………. 04
08=Orange, ..………….. 07
09=Red, ………………… 09
10=Brown, ……………… 10
PCB Board info:
NEW: HYZ-051BP13, Power Jack, LF control board, 11.3 V, 202105
EXISTING: HYZ-002BP13, Main board, v2.6, 2016/5/4
