Inverter on order but ...
Can someone provide mounting hole dimensions for the 6K. Building a handcart generator. TIA
Joe
2 hours ago, Joe S said:Inverter on order but ...
Can someone provide mounting hole dimensions for the 6K. Building a handcart generator. TIA
Joe
Sure thing.

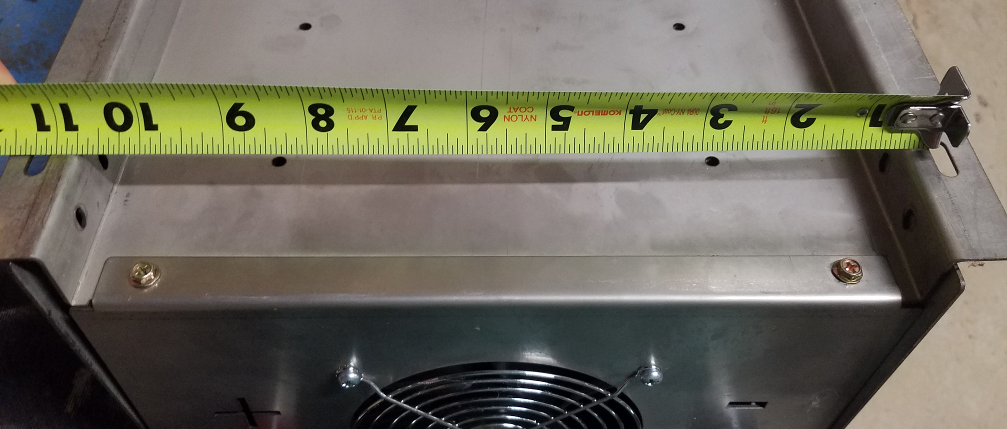

Mounting holes are roughly 11.25" across by 18.5" longwise.
//content.invisioncic.com/g308908/monthly_2021_08/image.thumb.png.debf60002607b17cfa07c3faf46c973d.png
(measuring from the left side of the left mounting hole to the left side of the right mounting hole.)
//content.invisioncic.com/g308908/monthly_2021_08/image.thumb.png.412dd90353605cd9e96f6165a50d5095.png
(measuring from the bottom of the top mounting hole, to the bottom of the bottom mounting hole.)
Thank you for your order!
Pleased to report that tests on the prototype Rev. C board are coming along very nicely. Likely will delay the inverter shipments a tad (for those that want the Rev. C control board), but so far so good.
